You are here: home  > Mini camera  > Spy gear 700TVL 5v pinhole camera/700tvl mini camera/700tvl cctv camera

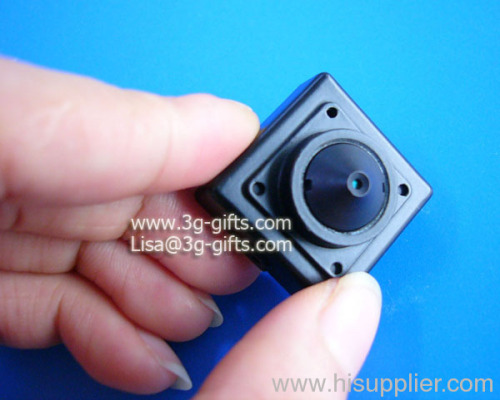

Spy gear 700TVL 5v pinhole camera/700tvl mini camera/700tvl cctv camera

Payment Terms: T/T,WU
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Means of Transport: Air

*Sony 1/3"960H EXview HAD CCD II
*700tvl
*DC5V,150mA,DC12V,80mA
*25*25mm,Button/pinhole/board lens

1.Total Pixels Number
NTSC: 1020(H) x 508(V) 520K
PAL : 1020(H) x 596(V) 610K
2. Effective Pixels Number
NTSC: 976(H) x 494(V) 480K
PAL:976(H) x 582(V) 570K
3.Pick-up Device
1/3"960H EXview HAD CCD II (Sony)
4. Lens Fitted
Board, Pinhole
5. Signal Process
Digital Signal Process
6. Scanning System
2:1 Interlace
7. Sync System
Internal
8. Scanning Frequency
NTSC:59.94Hz (VD)
PAL : 50Hz (VD)
9. Horizontal Resolution
700 TV Lines
10. S/N Ratio
More than 50dB (AGC Off )
11. Video Output
1.0Vpp composite (75R)
12. Min. Illumination
0.1Lux /30IRE, F2.0
13. Shutter Speed
NTSC: 1/60 ~ 1/100,000 sec
PAL : 1/50 ~ 1/100,000 sec
14. Power Consumption
DC12V , Max. 80mA
DC5V , Max. 150mA
15. Size:25mm*25mm
16. OSD(Option)
