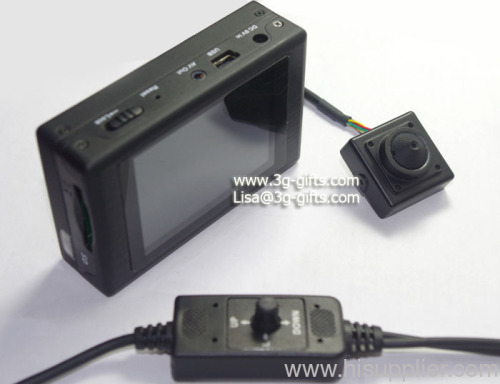

A portable SD card video recorder with internal battery and an LCD screen which can work with both PAL & NTSC. Great quality at 8000kb/s Mpeg4 format. Designed for being used with Button/Screw/Bullet camera kits or any body worn covert video camera. Great for police,guard,patrol,bouncer,reporter,investgator or any surveillance work.
1.Video compressed format: MPEG4;
2.Audio compressed format: MP3;
3.Photo format: JPG;
4.File format:AVI;
5.Audio and video input(output): RCA 3-in-1 AV output;
6.Storage type: SD(support over 32GB) card;
7.Video size and speed: PAL: 720x576(D1)/25FPS, NTS: 720x480(D1)/30FPS;
8.Picture size: Over 1.3mega pixel ;
9.Power supply for external camera is available:(Voltage:5V);
10.Video format(IN or OUT): NTSC/PAL;
11.Recording AV mode: Motion detection/manual/self startup;
12.Compute transfer interface: USB2.0;
13.Recording max bps:8M-10M;
14.Power: 3.7V 1000 mAH chargeable li-ion battery, 5.0V charger;
15.Motion detection;
16.Real-time recordings are marked in File;
17.Can AV IN/A IN/PHOTO TAKING;
18.With wireless control
19.Available control or controlled by I/O connector
20.Power: 5V/180MA
21.Size:78mm*51mm*22mm
Accessories: User Manual/Adapter/Battery/USB Cable/AV Cable/IR Remote Controller/Wired Controller/Carrying Case
HD 700TVL SPY CAM
1.Total Pixels Number
NTSC: 1020(H) x 508(V) 520K
PAL : 1020(H) x 596(V) 610K
2. Effective Pixels Number
NTSC: 976(H) x 494(V) 480K
PAL:976(H) x 582(V) 570K
3.Pick-up Device
1/3"960H EXview HAD CCD II (Sony)
4. Lens Fitted
Board, Pinhole
5. Signal Process
Digital Signal Process
6. Scanning System
2:1 Interlace
7. Sync System
Internal
8. Scanning Frequency
NTSC:59.94Hz (VD)
PAL : 50Hz (VD)
9. Horizontal Resolution
700 TV Lines
10. S/N Ratio
More than 50dB (AGC Off )
11. Video Output
1.0Vpp composite (75R)
12. Min. Illumination
0.1Lux /30IRE, F2.0
13. Shutter Speed
NTSC: 1/60 ~ 1/100,000 sec
PAL : 1/50 ~ 1/100,000 sec
14. Power Consumption
DC12V , Max. 80mA
DC5V , Max. 150mA
15. Size:25mm*25mm
16. OSD(Option)
